High Pressure Solar Water Heaters

High Pressure Solar Geyser Features

  • All components, with the exception of the collector tubes, are locally supplied.
  • Inner Tank is manufactured from 1.2mm thick, tough grade 444 stainless steel.
  • Evacuated tubes are top quality, 2.2mm thick and German designed.
  • Tough pre-coated corrosion resistant Aluzinc outer wrap.
  • Tank insulating material is zero emission and is 2015 protocol compliant.
  • Framework is available in various forms for ease of installation.
  • High Pressure Water heater rated at 400kPA.
  • Units installed on roof.
  • Freeze resistant.
  • Hail resistant.
  • 10 year warranty on the tank.
  • 25 years design life.
  • 15 years design life on tubes.
  • Anodic protection.
  • Electrical backup. (non-electrical assist available for 100l and 150l)

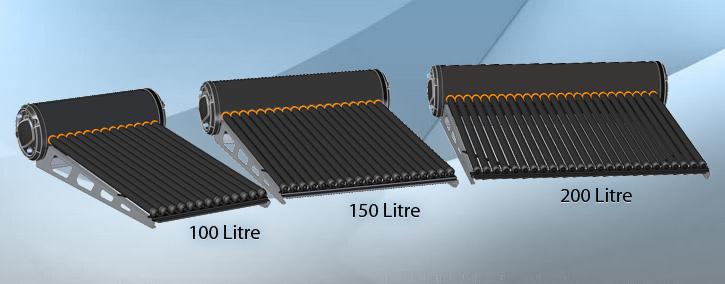

SRHPE-100L, 150L, 200L Specifications

100 Litre 150 Litre 200 Litre
Packaging Info Type Boxed Boxed Boxed
Size 500 x 500 x 1300 500 x 500 x 1745 500 x 500 x 2244
Dimensions and Capabilities Size of Geyser 1260 X 470 1730 X 470 2230 X 470
Weight installed System Empty 101kg 114kg 142kg
Weight installed System Full 201kg 264kg 342kg
Overall Footprint including tubes 1600 X 2258 mm 2100 X 2258 mm 2600 X 2258 mm
Tank Information Capacity 100L 150L 200L
Inner Tank Material 1.2mm 444 Stainless Steel 1.2mm 444 Stainless Steel 1.2mm 444 Stainless Steel
Inner Tank Diameter 360mm 360mm 360mm
Insulation Material Polyurethane Foam Polyurethane Foam Polyurethane Foam
Insulation Thickness 50mm 50mm 50mm
Insulation Density 36kg/m² 36kg/m² 36kg/m²
Outer Tank Material Precoat 0.4 Alu-Zinc Precoat 0.4 Alu-Zinc Precoat 0.4 Alu-Zinc
Outer Tank End Caps Material UV resistant Polypropylene UV resistant Polypropylene UV resistant Polypropylene
Product Diameter 470mm 470mm 470mm
Tank Joints Butt Welded Butt Welded Butt Welded
Tank Exit / Inlet Tubes 3/4 inch male exit / inlet 3/4 inch male exit / inlet 3/4 inch male exit / inlet
Element 2000W 2000W 2000W
Volts 230V~50Hz 230V~50Hz 230V~50Hz
Working Pressure 400kPa 400kPa 400kPa
Solar Collector Tubes Outer Tube Diameter 58mm 58mm 58mm
Material High Borosilicate glass High Borosilicate glass High Borosilicate glass
Tube QTY 13 19 25
Thickness 2.2mm 2.2mm 2.2mm
Tube Length 1.8m 1.8m 1.8m
Collector m² 2.015 2.945 3.875
Collector Tube Output 150 W ea 150 W ea 150 W ea
Support Stand Information Material 1.6mm Galvanised and Powder Coated 1.6mm Galvanised and Powder Coated 1.6mm Galvanised and Powder Coated
Installation Pitched Roof or Flat Roof Pitched Roof or Flat Roof Pitched Roof or Flat Roof
Efficiency Standing Heat Loss 1.62 kW per 24 hours 1.942 kW per 24 hours 2.26 kW per 24 hour

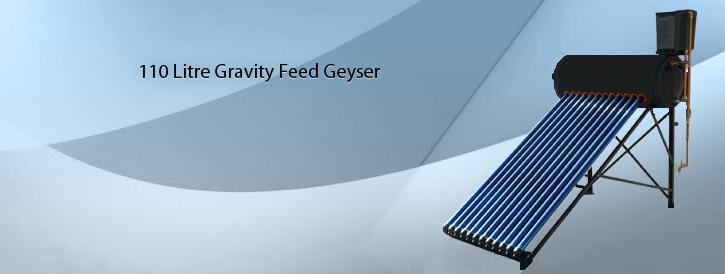

Low Pressure Solar Water Heaters

High Pressure Solar Geyser Features

  • All components, with the exception of the collector tubes, are locally supplied.
  • Inner Tank is manufactured from 0.7mm thick, tough grade 444 stainless steel.
  • Evacuated tubes are top quality, 2.2mm thick and German designed.
  • Tough pre-coated corrosion resistant Aluzinc outer wrap.
  • Tank insulating material is zero emission and is 2015 protocol compliant.
  • Framework is available in various forms for ease of installation.
  • This particular hot water heater is of the gravity feed cistern design.
  • Units installed on roof.
  • Freeze resistant.
  • Hail resistant.
  • 5 year warranty on the tank.
Horizontal Thermosyphon Borosilicate glass tubes Working Pressure: Atmospheric
Fitment: On Roof
Size: 110L
Construction Inner tank: Grade: 444 S/S
Thickness: 0.7mm
Diameter: 360mm
Outer Wrap: Aluzinc 150 micron precoat
Thickness: 0.45mm
End Caps: Polypropylene UV Stabilized
Tank Fittings: 3/4" 316 S/Steel male exit from sides
Heating Element: None fitted
Thermostat: None fitted
Water Reservoir Polypropylene UV stabilized
Capacity: 7L
Tank Seals High Temperature silicone
Geyser Dimensions Outer Dimensions 470mm
Solar Energy Collector Type: Glass tube
Construction: Diameter: 58mm
Length: 1.8m
Quantity tubes: 12 tubes
Collector Area: 1.97m
Length Excluding outlet pipes: 1260mm
Weight of units empty: Excluding tubes: 26kg
Package sizes: Geyser Tank: Length: 1350
Width: 510
Height: 510
12 Tube Box: L1870 x W290xH250
Weight: 30KG
Resevoir box: L350 x W300xH250
Weight: 3.5KG
